45BSET-5 Bed Alarm for Seniors and Elderly Fall Prevention

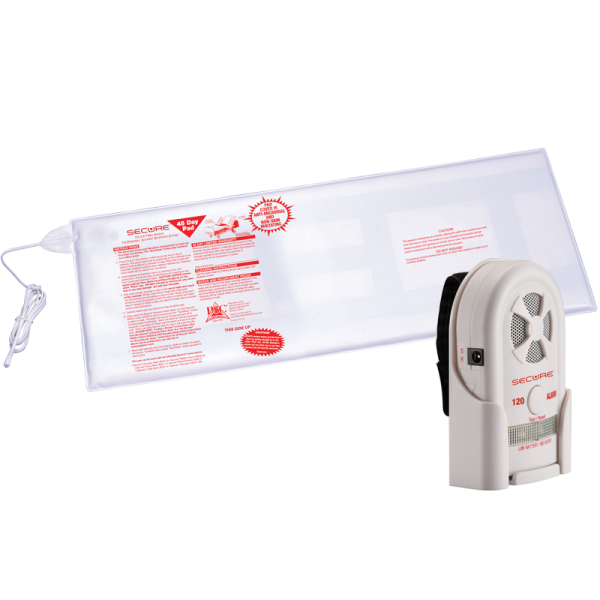

Secure® 45BSET-5 Bed Alarm Set – SUA-120 Fall Alarm Monitor and 12” x 30” Sensor Pad

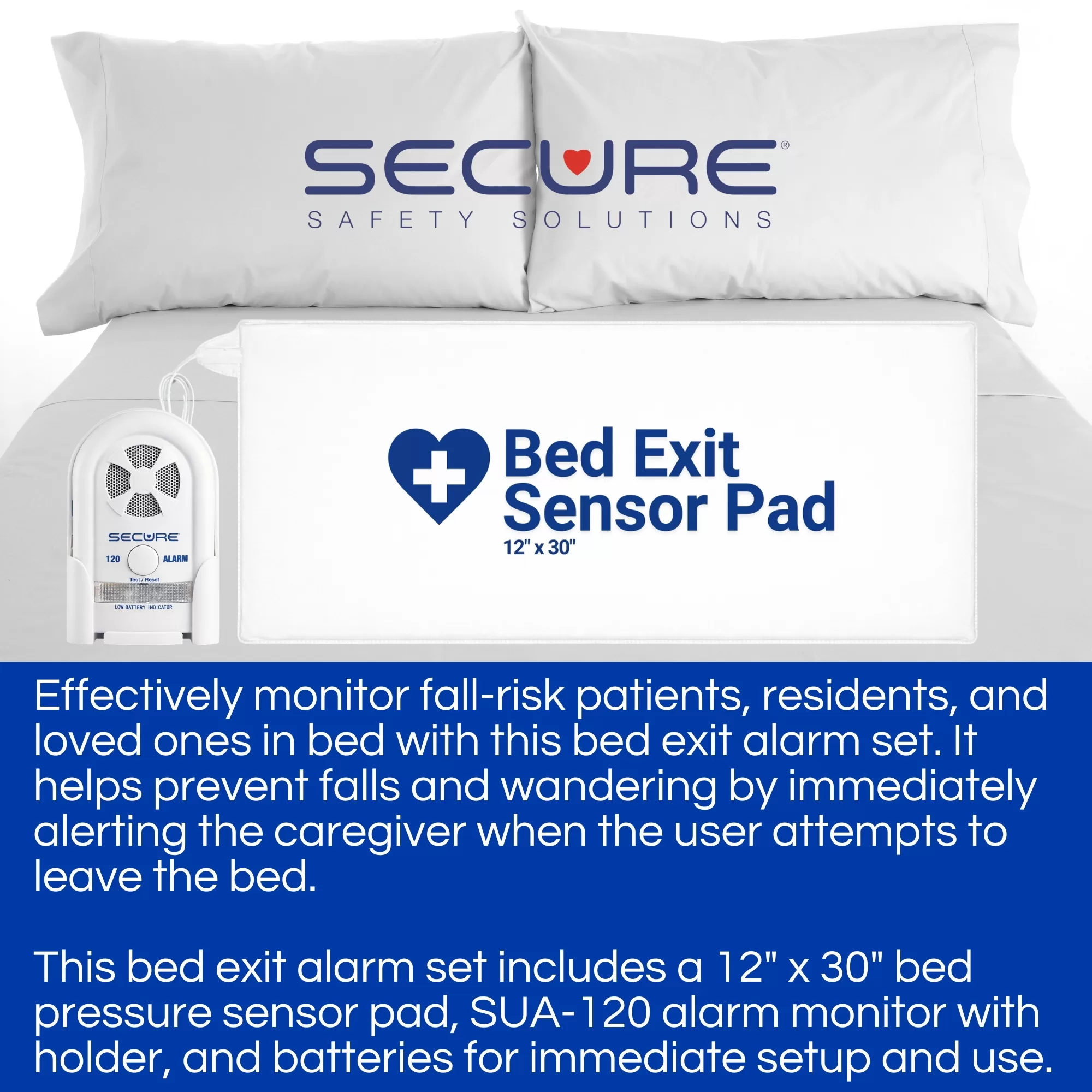

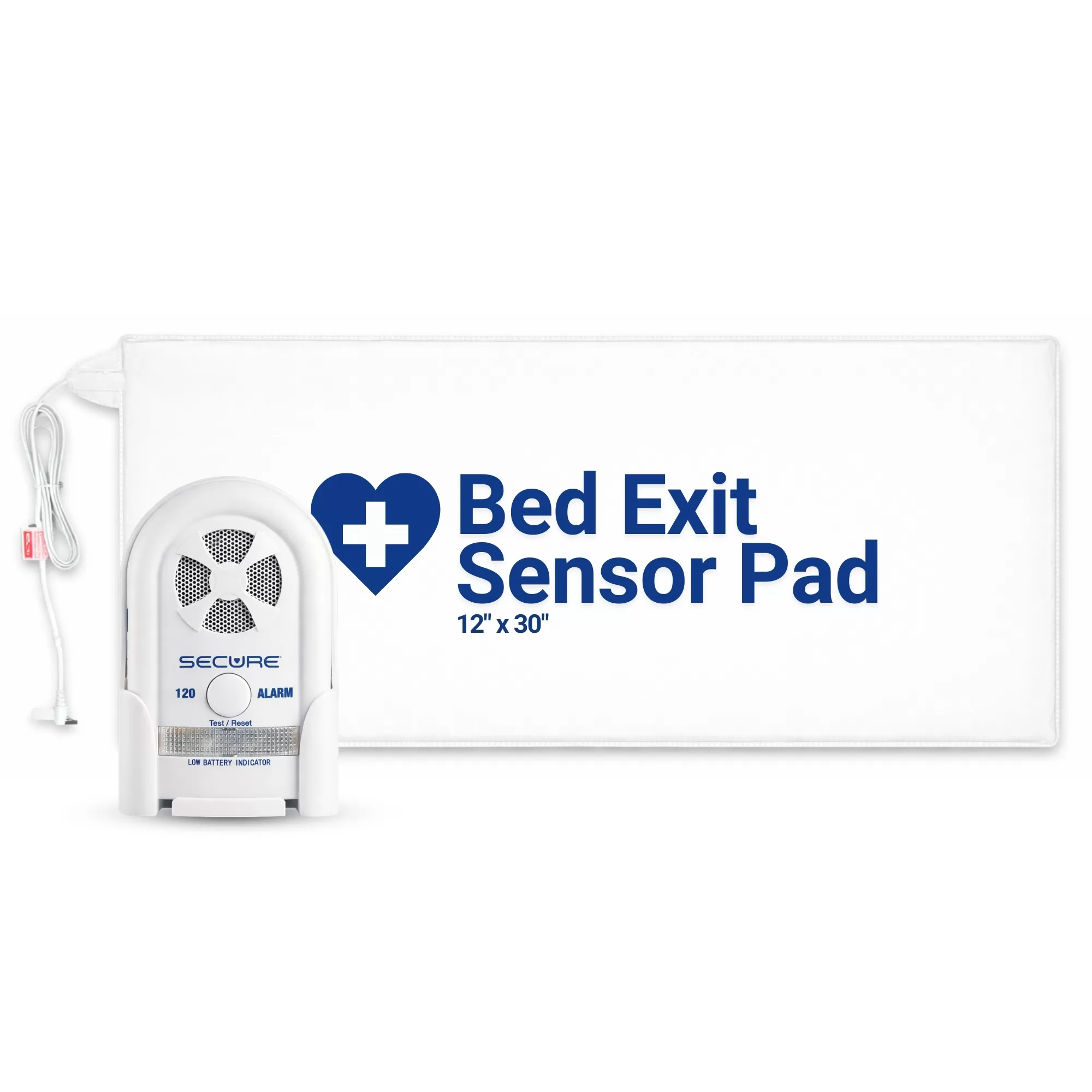

The 45BSET-5 Bed Alarm Set includes a 12″ x 30″ Bed Sensor PadSUA-120 Fall Alarm Monitor, PH-1 Alarm Monitor Holder, and 3x AAA Batteries.

The Secure 45BSET-5 Bed Alarm Set protects bedridden fall-risk patients and loved ones by alerting caregivers when an attempt is made to exit the bed. The bed sensor cord plugs into the alarm monitor mounted near the side of the patient’s bed. The alarm will sound in the room when pressure is removed from the sensor pad. The alarm will automatically reset when the patient returns to the sensor, or the alarm can be silenced via the tamper-resistant 3-press reset button.

Click below for SUA-120 instructions:

Wireless Alarm Instructions

Click below for Bed Pad-45 instructions:

Wireless Alarm Instructions

Click here to view our shipping rates.


Secure Fall Management Products45BSET-5 Bed Alarm Set – SUA-120 Fall Alarm Monitor and 12” x 30” Bed Sensor Pad

This bed exit alarm set includes a 12″ x 30″ Bed Sensor PadSUA-120 Fall Alarm Monitor, PH-1 Alarm Monitor Holder, and 3x AAA Batteries.

The tamper-proof SUA-120 patient alarm monitor features adjustable alarm volume (80-120 dB), two alarm tone options, a one-year full replacement warranty, and three AAA batteries.

The alarm monitor can be connected to a facility’s in-wall nurse call system to notify nursing staff of unsafe egress remotely. The optional NCI-1 Nurse Call Cable is required to enable this functionality. An optional AC/DC adapter is available to power the alarm monitor instead of batteries.

The ultra-thin bed sensor pad measures 12″ x 30″, is Latex-free, incontinent-proof, and can be folded without damage. Unlike other brands with easily breakable plastic connectors, it also features a metal connecting pin that won’t break.

With this bed alarm set, you can rest assured of prompt and reliable alerts, minimizing the risk of elderly falls and injuries. The user-friendly bed exit alarm design and easy-to-install components are ideal for various settings, including hospitals, care homes, and personal residences. In addition, this bed alarm set’s compact and portable design makes it easy to move from one location to another, providing versatile patient monitoring options in a bed, chair, or wheelchair. Secure bed and chair alarms for fall prevention are the choice of smart caregivers.

Features of the Secure® 120 Fall Alarm Monitor (Model No. SUA-120):

  • The patient alarm monitor is always on for resident safety. Staff can’t forget to activate the alarm (Meets Joint Commission guidelines)
  • The tamper-resistant covers are designed to hide the patient alarm settings.
  • The flashing alert light allows caregivers and nurses to easily identify an activated alarm.
  • There are two alarm tones to choose from, and the alarm volume can be set to 80, 90, or 120 dB.
  • The caregiver is alerted by light and sound when batteries are low.
  • Residents are prevented from tampering with the alarm monitor by a reset button that requires three presses.
  • 3x AAA batteries, a protective holder, wall-mounting hardware, and a screwdriver are included in the package.
  • The optional Nurse Call Cable (NCI-1) allows the alarm monitor to connect to an existing in-wall nurse call system with a 1/4″ plug.
  • The optional ACDC-1 adapter powers the alarm monitor in place of batteries.
  • The SUA-120 works with all Secure brand wired bed, chair, and wheelchair seat belt sensors.
  • The alarm monitor is covered by a one-year warranty and a hassle-free replacement guarantee.
  • HCPCS Code – A9280

Features of the Secure® Bed Sensor Pad (Model No. BEDPAD-45):

The dimensions of the bed sensor pad are 12 inches by 30 inches. It is designed without any holes and can resist liquid or spills. The pad is ultra-thin, ensuring maximum comfort, and it can be folded for easy storage. It has no weight restrictions, making it suitable for all body types. The slip-resistant bottom keeps the sensor pad in place on the bed.

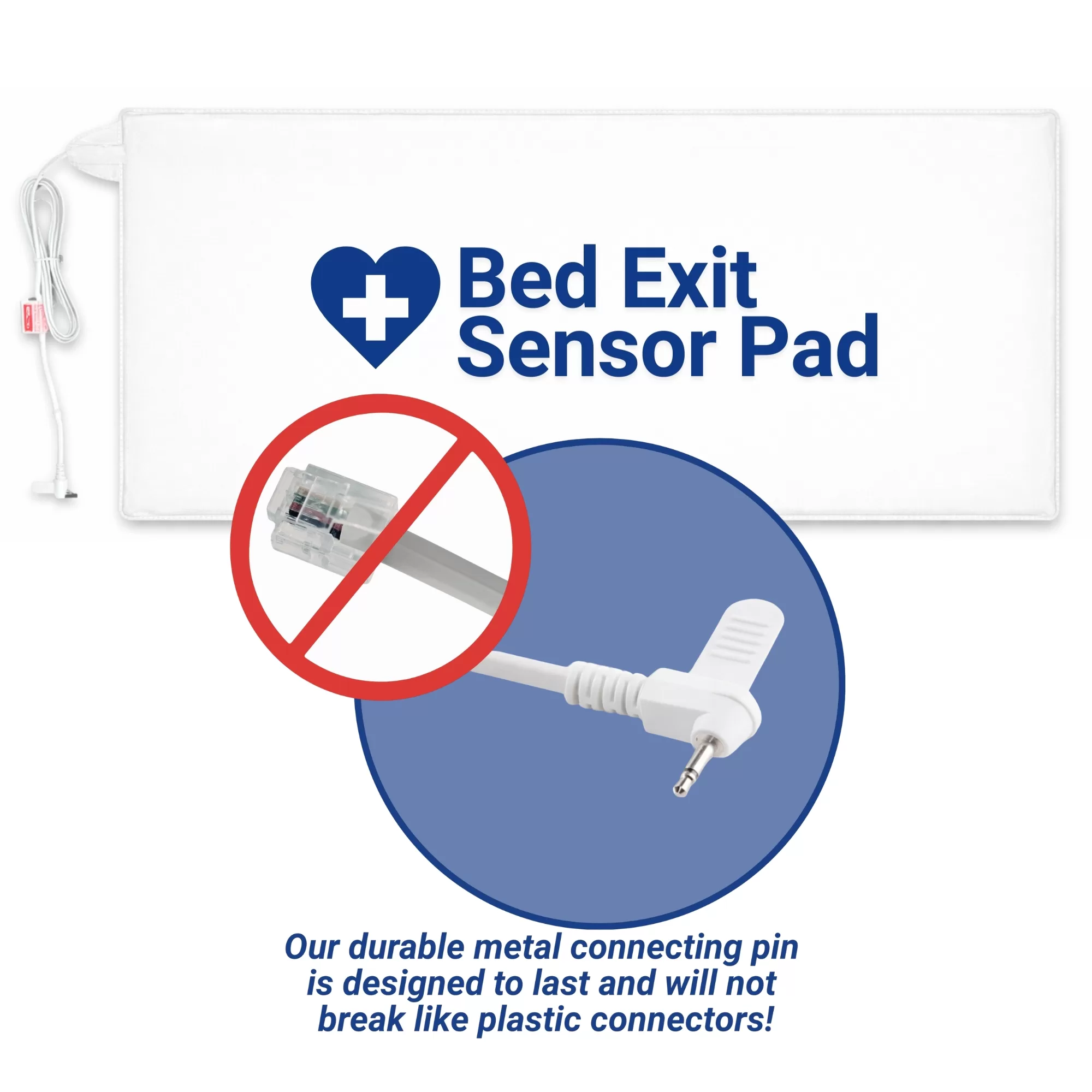

The bed sensor pad connector is made of metal, ensuring that it does not break like the plastic connectors of competitors. A 5 ft. connecting cord is provided, and a 2 ft. extension cord is also available to mount the alarm farther away from the resident. The bed sensor pad can be used on all types of mattresses.

The bed sensor pad is covered by a 45-day warranty and a hassle-free replacement guarantee, giving you complete peace of mind.

Safety Floor Mat Safety Pin
  • Built-In Pull Tab for EZ Removal of Pad Pin from the Alarm Monitor!
  • Our Metal Connecting Pin Will Not Break!
  • Our Mats Are Antimicrobial!
Antimicrobial Fall Management Pads

Special Features included with all our Alarm Monitors and Sensor Pads

  • Auto reset feature helps eliminate false alarms or “alarm monitor fatigue.”
  • The alarm monitor will not sound if the resident rolls over in bed.
  • The alarm monitor sound will automatically shut off if the resident sits or lies back down on the sensor pad after fully getting off the pad.
  • Our ultra-thin monitoring pads are discreet and imperceptible to the user. Ideal for dementia residents.

Additional information

Weight 1.05 lbs
